Mining Cable - Product Detail

Product Overview

Our mining cables are engineered specifically for the harsh and demanding environments of underground and surface mining operations. They are designed to deliver reliable power, control, and communication in conditions involving mechanical stress, moisture, chemicals, and extreme temperatures.

Key Features & Advantages

• Robust Construction: Features heavy-duty elastomer jackets (like CSP/CPE) offering superior resistance to abrasion, crushing, impact, oil, and flame.

• Enhanced Flexibility: Specially stranded conductors and flexible insulation materials allow for easier handling and installation around machinery and in confined spaces.

• Exceptional Safety: Compliant with stringent international standards for flame retardancy and low smoke emission (e.g., MSHA, IEC), ensuring safer operation in case of fire.

• Optimal Conductivity: Utilizes high-purity copper conductors with precise stranding for efficient power transmission and minimal voltage drop.

• Reliable Performance: Excellent resistance to ozone, weathering, and hydrolysis ensures long-term durability and reduces downtime.

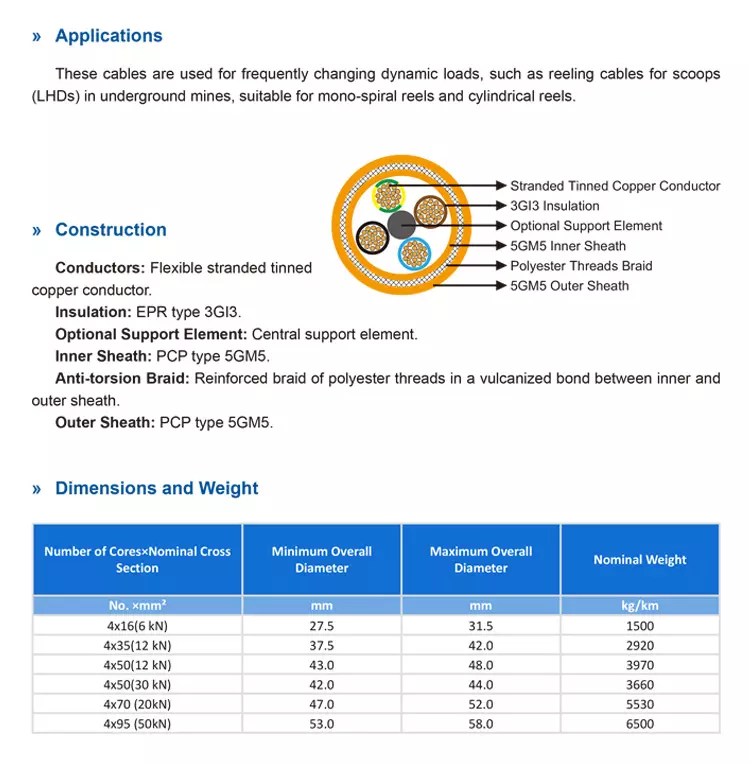

Technical Specifications

• Compliance Standards: Manufactured in accordance with GB, IEC, and other relevant international standards (e.g., IEC 60245, IEC 60502).

• Conductor: High-grade, finely stranded bare copper or tinned copper.

• Insulation: Specialized rubber compounds (EPR, CSP) or cross-linked polyethylene (XLPE) for thermal stability and dielectric strength.

• Jacket: Heavy-duty, color-coded elastomer compound resistant to mechanical abuse, oils, and flame propagation.

• Voltage Rating: Commonly available from 300/500V up to 0.6/1kV and 1.8/3kV.

• Core Configurations: Ranging from 3 cores + Earth to multi-core configurations for power and control applications.

• Temperature Range: Flexible operation typically from -20°C to +90°C (dependent on specific construction).
